Features
It has the functions of drawing points,lines,arcs,circles,and irregularcurve continuous tweening input programs,and can be 3D dispensing;
Continuous dispensing function for irregular curvessuch as arbitrary points,lines,surfaces,arcs,etc.;
High-speed,low-noise speed DCbrushless motor makesdispensing better;
The static eliminator caneliminatestatic electricity within±100V;
The automaticcompensation function of dispensing force makes the operation more convenient;
The area array of XY,the function of translation and rotation,and the reverse use of the material plate,are suitable for the positioning of different jobs.
Applicable industries
Suitable for mobile phones,laptops,3C digital products,automotive electronics,electronic components,LED,household appliances, medical equipment,new energy,LCD,SMT,RJ/network transformers, industrial electronics,handicrafts,plastics,metals,glass and hardware and other industries.
Suitable for a wide range of glue surfaces,suchas UV glue,epoxy resin,silica gel,AB glue,black glue,white glue,PU glue,instant glue,red glue,solder paste,thermal paste,polyurethane,paint, alcohol,ink,etc..
Technical Parameter
|
Model |

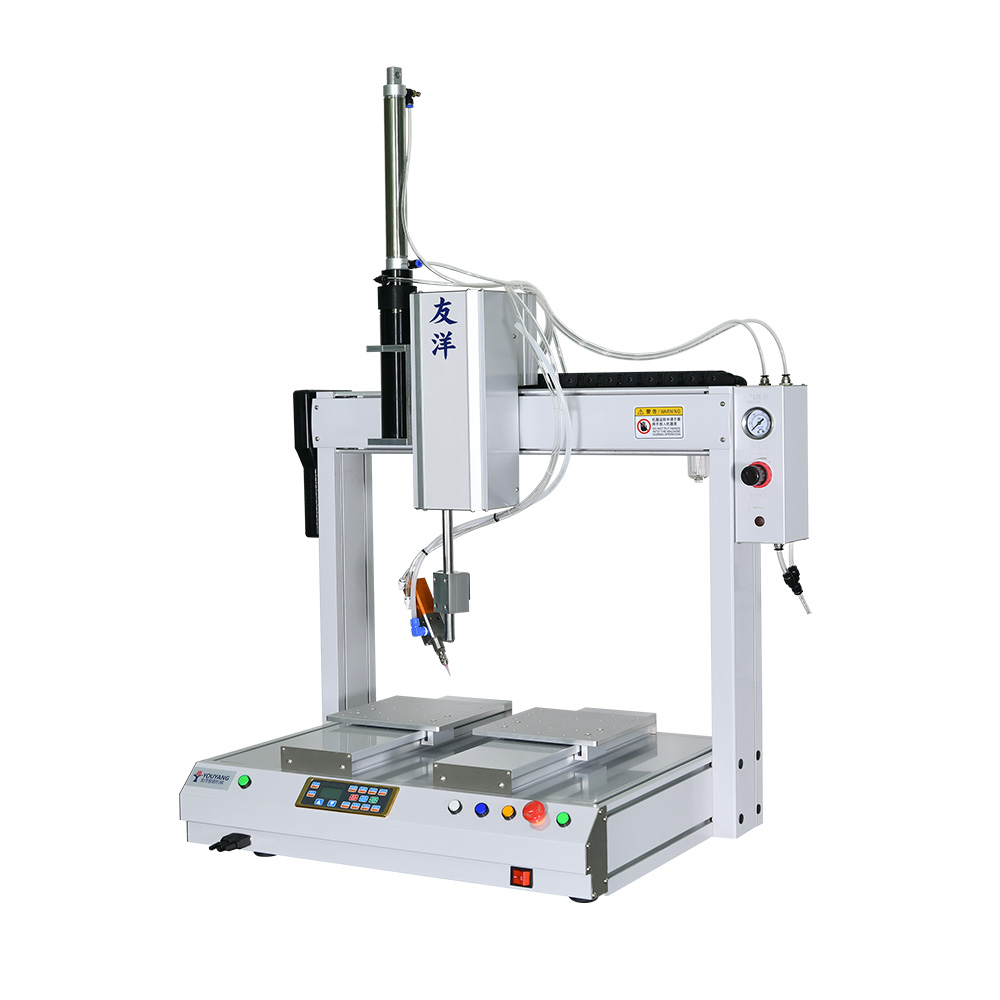

YY-400TRU 5-axis Automatic Glue Dispenser |
|
WorkPlan |
X-axis 400mm Y-axis 400mm Z-axis 100mm R-axis 360 degrees U-axis 360 degrees |
|
Displacement Speed |
0-500mm/sec |
|
Mechanical Accuracy |
±0.02mm |
|
Repeatability |
±0.02mm |
|
Transfer Method |
Japan stepper motor + linear guide + synchronous belt |
|
Control System |
Professional Dispenser Handheld Control System |
|
Program Memory |
Group of 100 |
|
Transfer Speed |
Maximum 18 m/min |
|
Noise Value |
70db |
|
Input Power |
AC220V 50-60HZ1.2KW |
|
Air Pressure |
4-7Kg |
* Can becustomized according to customer requirements
